Manufacturer,Stockist and Exporter of A105 Industrial Blind Flange

A105 Industrial Blind Flange, A105 Industrial Blind Flange, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,ASTM A105 Blind Flange,ANSI B16.47 Series A Blind Flange

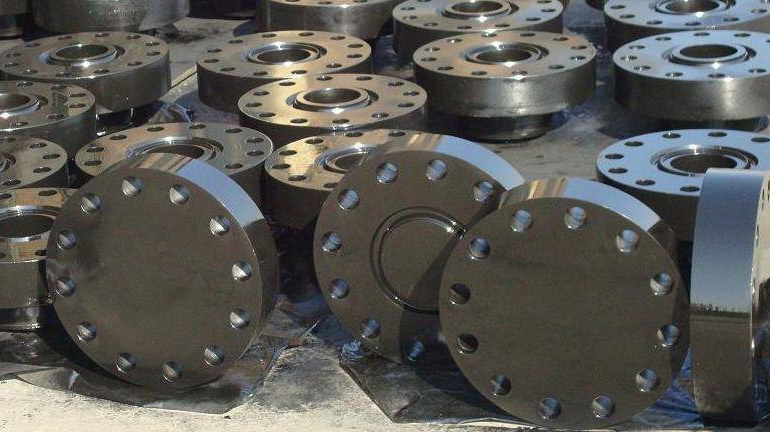

Raj Bhoomi Engineers is a prominent manufacturer, stockist, and exporter of A105 Industrial Blind Flange, offering high-performance flanges designed to meet the demanding requirements of industrial applications. Made from ASTM A105 carbon steel, these blind flanges are specifically engineered for use in piping systems where the end of a pipe needs to be sealed securely. Known for their strength, durability, and resistance to pressure, A105 blind flanges are ideal for use in high-temperature and high-pressure environments commonly found in industrial sectors.

The A105 Industrial Blind Flange is used widely across industries such as oil and gas, chemical processing, water treatment, petrochemicals, and power generation. Blind flanges are essential for isolating piping systems during maintenance, testing, or shutdowns, and are also used for future expansion of piping networks. Raj Bhoomi Engineers manufactures these flanges in various sizes and pressure ratings, strictly adhering to international standards like ASME, ANSI, and DIN to ensure reliability and performance under critical conditions.

With a strong export presence, Raj Bhoomi Engineers supplies A105 Industrial Blind Flange to several countries including Oman, Qatar, Saudi Arabia, UAE, and Kuwait, where industrial infrastructure demands top-grade components. The company also exports to Spain, Germany, the USA, Canada, and a wide range of regions across Africa. The flanges are trusted by global clients for their precision, consistency, and long service life, especially in environments that demand leak-proof and corrosion-resistant solutions.

As a dedicated stockist, Raj Bhoomi Engineers maintains a large and ready inventory of A105 blind flanges to cater to both standard and urgent project requirements. Their well-managed supply chain and global logistics capabilities allow them to deliver orders quickly and efficiently to international customers, ensuring minimal downtime and seamless project execution for industries around the world.

Specification of A105 Industrial Blind Flange

Specification	Details
Material	ASTM A105 Carbon Steel
Product Type	Industrial Blind Flange
Flange Size Range	½" to 48" (DN15 to DN1200)
Pressure Ratings	Class 150, 300, 600, 900, 1500, 2500 (PN6 to PN400)
Standards	ASME B16.5, ASME B16.47 Series A/B, ANSI, DIN, EN, BS, JIS
Facing Types	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
End Connection	Bolted
Application	Oil & Gas, Chemical Processing, Power Plants, Petrochemicals, Water Systems
Temperature Range	-29°C to 425°C (-20°F to 800°F)
Surface Finish	Black Painted, Anti-Rust Coated, or Customized
Testing & Certification	Hydrostatic Test, NDT (as per requirement), MTC EN 10204 3.1/3.2
Corrosion Resistance	Moderate (can be improved with coating or plating)
Manufactured By	Raj Bhoomi Engineers, India

Each A105 Industrial Blind Flange produced by Raj Bhoomi Engineers undergoes strict quality control and testing procedures, including dimensional checks, pressure tests, and material traceability certifications. The company ensures compliance with all applicable standards and offers full documentation such as Material Test Certificates (MTC), third-party inspection reports, and customer-specific requirements.

Raj Bhoomi Engineers has established itself as a trusted source for A105 Industrial Blind Flange across global markets. With a focus on quality, timely delivery, and customer satisfaction, the company continues to meet the complex needs of industries around the world, supplying robust and reliable flange solutions that perform under the toughest conditions.

A105 Industrial Blind Flange Chemical Properties

Element	Composition (%)
Carbon (C)	0.35 max
Manganese (Mn)	0.60 – 1.05
Phosphorus (P)	0.035 max
Sulfur (S)	0.040 max
Silicon (Si)	0.10 – 0.35
Copper (Cu)	0.40 max (if specified)
Nickel (Ni)	0.40 max (if specified)
Chromium (Cr)	0.30 max (if specified)
Molybdenum (Mo)	0.12 max (if specified)
Vanadium (V)	0.08 max (if specified)

A105 Industrial Blind Flange Mechanical Properties

Property	Value	Unit	Notes
Tensile Strength	485 – 655	MPa	Minimum 70 – 95 ksi
Yield Strength (0.2% Offset)	≥ 250	MPa	Minimum 36 ksi
Elongation (in 2")	≥ 22	%	For standard specimen
Reduction of Area	≥ 30	%	May vary depending on test method
Hardness (Brinell)	≤ 187	HB	Maximum, as per ASTM A105 specification
Impact Energy (Charpy V-Notch)	Not required unless specified	–	Required only for low-temperature service

Features of A105 Industrial Blind Flange

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of A105 Industrial Blind Flange

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	ANSI B16.47 Series A Blind Flange
ANSI B16.47 Series B Blind Flange	MSS SP-44 A105 Blind Flange
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
