Manufacturer,Stockist and Exporter of A105 Pipeline Blind Flange

A105 Pipeline Blind Flange, A105 Pipeline Blind Flange, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,ASTM A105 Blind Flange,ANSI B16.47 Series A Blind Flange

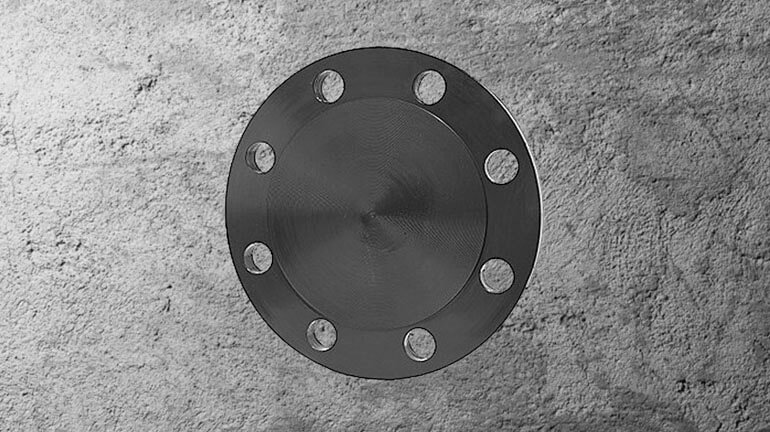

Raj Bhoomi Engineers is a well-established manufacturer, stockist, and exporter of A105 Pipeline Blind Flanges, catering to the diverse needs of the global oil, gas, and pipeline industries. These flanges are an essential component in pipeline systems, providing a secure closure at the end of a piping line or valve. Made from high-quality ASTM A105 carbon steel, these blind flanges offer excellent strength, pressure resistance, and durability, making them ideal for high-pressure pipeline applications.

The A105 Pipeline Blind Flange is widely used in fluid handling systems across petrochemical, oil & gas, water treatment, and power generation sectors. Raj Bhoomi Engineers manufactures these flanges in various pressure classes (from Class 150 to Class 2500) and diameters, adhering strictly to international standards like ASME B16.5, ASME B16.47, and EN. The flanges are available with different face types such as Raised Face (RF), Flat Face (FF), and Ring Type Joint (RTJ), depending on specific operational and sealing requirements.

15NiCuMoNb5-6-4-1.6368 - A182 F36 Fabricated Tee

At Raj Bhoomi Engineers, each A105 Pipeline Blind Flange undergoes rigorous quality testing, including hydrostatic, ultrasonic, and visual inspections, to ensure flawless performance under extreme conditions. The company maintains a ready stock of blind flanges in standard sizes and can also accommodate custom orders with short lead times. With ISO-certified facilities and advanced forging technology, Raj Bhoomi Engineers guarantees high-quality, reliable flanges for both standard and specialized pipeline needs.

Raj Bhoomi Engineers has a strong global footprint, exporting A105 Pipeline Blind Flanges to critical markets including Oman, Qatar, Saudi Arabia, UAE, and Kuwait, where demand for reliable pipeline infrastructure continues to grow. In addition, the company serves clients in Spain, Germany, the USA, and Canada, and has an expanding presence across Africa and other regions worldwide. Its efficient logistics network ensures timely delivery and seamless export processes, even for bulk or urgent orders.

Specification of A105 Pipeline Blind Flange

Specification Item	Details
Material Grade	ASTM A105 (Carbon Steel)
Product Type	Blind Flange
Standard Specifications	ASME B16.5, ASME B16.47, ANSI, DIN, EN, BS
Size Range	½" to 48" (DN15 to DN1200)
Pressure Ratings	Class 150, 300, 600, 900, 1500, 2500
Face Type	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Manufacturing Type	Forged
Connection Type	Bolted, for closure at the end of piping systems
Temperature Range	Up to 538°C (1000°F), depending on design and pressure class
Applications	Oil and Gas, Petrochemical, Refineries, Offshore Platforms, Power Plants
Corrosion Resistance	Moderate (can be enhanced with coating or plating)
Testing & Certification	Hydrostatic Test, Ultrasonic Test, MTC (EN 10204 3.1/3.2), NDT (if required)

The strength of Raj Bhoomi Engineers lies not only in its manufacturing capabilities but also in its customer-centric approach. From offering technical consultations to providing customized flange solutions, the company supports its clients at every stage of the procurement process. This dedication has made Raj Bhoomi Engineers a trusted partner for many EPC contractors, oil refineries, and offshore drilling companies worldwide.

Raj Bhoomi Engineers is a top-tier supplier of A105 Pipeline Blind Flanges, combining engineering expertise with global distribution capabilities. Whether for upstream, midstream, or downstream applications, their flanges meet the highest industry standards for safety, durability, and performance, making them a preferred choice across the international oil and gas sector.

A105 Pipeline Blind Flange Chemical Properties

Element	Composition (%)
Carbon (C)	0.35 max
Manganese (Mn)	0.60 – 1.05
Phosphorus (P)	0.035 max
Sulfur (S)	0.040 max
Silicon (Si)	0.10 – 0.35
Copper (Cu)	0.40 max (if specified)
Nickel (Ni)	0.40 max (if specified)
Chromium (Cr)	0.30 max (if specified)
Molybdenum (Mo)	0.12 max (if specified)
Vanadium (V)	0.08 max (if specified)

A105 Pipeline Blind Flange Mechanical Properties

Property	Value	Unit	Notes
Tensile Strength	485 – 655	MPa	Minimum 70 – 95 ksi
Yield Strength (0.2% Offset)	≥ 250	MPa	Minimum 36 ksi
Elongation (in 2")	≥ 22	%	For standard specimen
Reduction of Area	≥ 30	%	May vary depending on test method
Hardness (Brinell)	≤ 187	HB	Maximum, as per ASTM A105 specification
Impact Energy (Charpy V-Notch)	Not required unless specified	–	Required only for low-temperature service

Features of A105 Pipeline Blind Flange

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of A105 Pipeline Blind Flange

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	ANSI B16.47 Series A Blind Flange
ANSI B16.47 Series B Blind Flange	MSS SP-44 A105 Blind Flange
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
