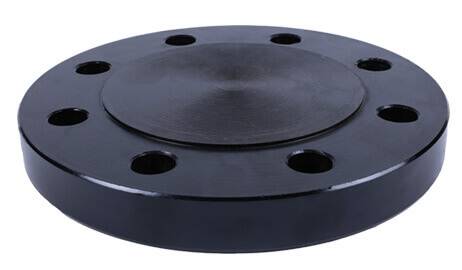

The A105 Schedule 160 Blind Flange is a heavy-duty component designed for high-pressure piping systems. Made from ASTM A105 carbon steel, this flange is manufactured to match Schedule 160 wall thicknesses, which are typically used in demanding applications involving high-pressure fluids or gases. Its primary function is to close the ends of piping lines, valves, or pressure vessels while allowing future access for inspection, modification, or extension. The increased thickness provides added strength, ensuring leak-free operation under severe conditions.

Raj Bhoomi Engineers is a trusted manufacturer, stockist, and exporter of A105 Schedule 160 Blind Flanges, known for delivering quality products that comply with global engineering standards such as ASME B16.5, ASME B16.47, and ASTM A105. The company’s flanges are produced using advanced forging and machining techniques, followed by rigorous testing to ensure high performance under pressure. All flanges are provided with full traceability and material certifications as per customer requirements.

Serving some of the most demanding markets, Raj Bhoomi Engineers exports A105 Schedule 160 Blind Flanges to major Middle Eastern countries including Oman, Qatar, Saudi Arabia, UAE, and Kuwait. These nations have extensive oil & gas and petrochemical operations that require reliable piping components capable of withstanding high pressures and harsh operating environments. The company’s ability to deliver durable and precise flanges on time makes it a preferred partner for EPC contractors and industrial operators across the region.

Raj Bhoomi Engineers also has a strong presence in Europe and North America, exporting to countries such as Spain, Germany, the USA, and Canada. In these regions, engineering precision, compliance, and documentation are paramount, and Raj Bhoomi Engineers meets these expectations with high-quality manufacturing and global-standard processes. The A105 Schedule 160 Blind Flange is commonly used in power plants, chemical industries, marine systems, and infrastructure projects where performance and safety are critical.

Specification of A105 Schedule 160 Blind Flange

Parameter	Specification
Product Name	A105 Schedule 160 Blind Flange
Material Grade	ASTM A105 (Carbon Steel)
Flange Type	Blind Flange
Schedule Rating	Schedule 160 (Heavy Wall Thickness)
Size Range	1/2" to 36" (Larger sizes on request)
Pressure Class	ANSI/ASME Class 150, 300, 600, 900, 1500, 2500
Standard Compliance	ASME B16.5, ASME B16.47 Series A & B, ASTM A105
Face Type	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Surface Finish	125–250 AARH (stock finish) or as per customer requirements
Thickness	As per Schedule 160 pipe wall standards
Testing & Inspection	Hydrostatic, UT, RT, PMI, Visual, Dimensional (as per client requirements)
Documentation	EN 10204 3.1 / 3.2 Mill Test Certificate, Compliance Reports
Coating Options	Black Paint, Anti-Rust Oil, Galvanized (on request)
Applications	High-Pressure Piping, Oil & Gas, Power Plants, Chemical Processing, Refineries
Manufacturer	Raj Bhoomi Engineers
Export Destinations	Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, USA, Canada, Africa, etc.

Beyond these developed markets, the company supports infrastructure and industrial growth in Africa and other regions worldwide, supplying robust flange solutions to emerging economies and large-scale projects. With a dedicated export division, extensive stock, and reliable logistics, Raj Bhoomi Engineers ensures timely global delivery along with responsive after-sales support.

Known for quality, consistency, and customer satisfaction, Raj Bhoomi Engineers continues to be a leading supplier of A105 Schedule 160 Blind Flanges around the globe. Their commitment to technical excellence and international service ensures clients receive trusted, high-performance solutions for even the most demanding industrial applications.

A105 Schedule 160 Blind Flange Chemical Properties

Element	Composition (%)
Carbon (C)	≤ 0.35
Manganese (Mn)	0.60 – 1.05
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.040
Silicon (Si)	0.10 – 0.35
Copper (Cu)	≤ 0.40 (if specified)
Nickel (Ni)	≤ 0.40 (if specified)
Chromium (Cr)	≤ 0.30 (if specified)
Molybdenum (Mo)	≤ 0.12 (if specified)
Vanadium (V)	≤ 0.08 (if specified)

A105 Schedule 160 Blind Flange Mechanical Properties

Property	Value / Specification
Tensile Strength	≥ 485 MPa (70,000 psi)
Yield Strength	≥ 250 MPa (36,000 psi)
Elongation	≥ 22% (in 50 mm or 2 inches)
Reduction of Area	≥ 30%
Hardness	≤ 187 HB (Brinell Hardness)
Impact Test (Charpy V)	Optional – performed if specified by purchaser
Heat Treatment	Forged, Normalized, or Normalized & Tempered
Operating Temperature	-29°C to 425°C (-20°F to 800°F)
Testing Standards	As per ASME/ASTM (tensile, hardness, impact, etc.)

Features of A105 Schedule 160 Blind Flange

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of A105 Schedule 160 Blind Flange

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	ANSI B16.47 Series A Blind Flange
ANSI B16.47 Series B Blind Flange	MSS SP-44 A105 Blind Flange
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
