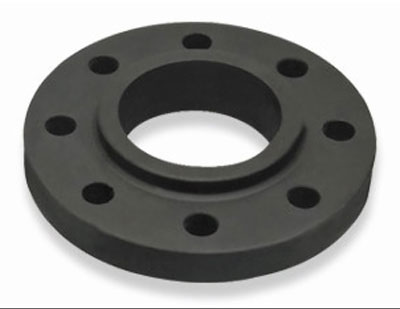

Manufacturer,Stockist and Exporter of A105 Steam Line Flange

A105 Steam Line Flange, A105 Steam Line Flange, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,ASTM A105 Blind Flange,ANSI B16.47 Series A Blind Flange

Raj Bhoomi Engineers is a trusted manufacturer, stockist, and exporter of A105 Steam Line Flange, supplying robust carbon steel flanges designed for high-pressure and high-temperature steam applications. Manufactured using ASTM A105 carbon steel, these flanges are specifically engineered to perform in the harsh environments of steam lines, boilers, and thermal energy systems. Their mechanical strength, thermal resistance, and sealing capabilities make them ideal for secure, leak-proof connections in steam distribution networks.

The A105 Steam Line Flange is essential in industries where steam is a critical utility, such as power generation, chemical processing, oil & gas, and refineries. These flanges come in various types including weld neck, slip-on, socket weld, and blind, each selected based on application needs and pressure class. Raj Bhoomi Engineers produces these flanges in accordance with global standards such as ASME B16.5, B16.47, ANSI, and DIN, ensuring compatibility and safe operation in critical piping systems.

Quality assurance is central to every product delivered by Raj Bhoomi Engineers. Each A105 Steam Line Flange undergoes rigorous quality testing, including dimensional checks, hydrostatic testing, and material certification in accordance with EN 10204 3.1/3.2 standards. The company also offers third-party inspections as per customer requirements, ensuring full traceability and technical integrity of each flange.

Raj Bhoomi Engineers stands out as a reliable global supplier of A105 Steam Line Flange, offering high-performance, durable flanges for demanding steam service conditions. Their commitment to quality, global export capabilities, and customer-focused approach make them a preferred partner for industries worldwide seeking dependable steam line flange solutions.

Specification of A105 Steam Line Flange

Specification	Details
Material Grade	ASTM A105 Carbon Steel
Product Type	Steam Line Flange
Flange Types	Weld Neck, Slip-On, Blind, Socket Weld, Threaded, Lap Joint
Size Range	½" to 48" (DN15 to DN1200)
Pressure Ratings	Class 150, 300, 600, 900, 1500, 2500 (PN6 to PN400)
Standards	ASME B16.5, ASME B16.47 Series A/B, ANSI, DIN, EN, BS, JIS
Facing Options	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Temperature Range	-29°C to 425°C (-20°F to 800°F)
Surface Finish	Black Paint, Anti-Rust Coated, Oil Coated, or as per client requirement
Applications	Steam Lines, Boilers, Power Plants, Refineries, Thermal Systems
Testing & Certification	Hydrostatic Test, NDT, MTC (EN 10204 3.1/3.2), Third-Party Inspection
Manufactured By	Raj Bhoomi Engineers, India

Every A105 Steam Line Flange undergoes strict quality control measures including pressure testing, dimensional accuracy checks, and certification of material traceability. The company provides full technical documentation such as Material Test Certificates (MTC) and third-party inspection reports upon request. These practices ensure that each flange delivered by Raj Bhoomi Engineers meets or exceeds international quality expectations.

Raj Bhoomi Engineers has built a solid reputation for delivering high-performance A105 Steam Line Flange solutions across global markets. With in-house manufacturing expertise, large-scale stocking capabilities, and a strong international export network, the company continues to support water treatment and infrastructure development initiatives with reliable and durable piping components.

A105 Steam Line Flange Chemical Properties

Element	Composition (%)
Carbon (C)	≤ 0.35
Manganese (Mn)	0.60 – 1.05
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.040
Silicon (Si)	0.10 – 0.35
Copper (Cu)	≤ 0.40 (if specified)
Nickel (Ni)	≤ 0.40 (if specified)
Chromium (Cr)	≤ 0.30 (if specified)
Molybdenum (Mo)	≤ 0.12 (if specified)
Vanadium (V)	≤ 0.08 (if specified)

A105 Steam Line Flange Mechanical Properties

Mechanical Property	Value
Tensile Strength (min)	485 MPa (70,000 psi)
Yield Strength (min)	250 MPa (36,000 psi)
Elongation (% in 2")	22% minimum
Reduction of Area	30% minimum
Hardness (Brinell, HBW)	187 max (or up to 250 for small parts)
Impact Strength	As required by application (optional)
Test Temperature	Room Temperature (unless otherwise specified)
Heat Treatment	Normalizing required for flanges above Class 300 or for severe service

Features of A105 Steam Line Flange

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of A105 Steam Line Flange

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	ANSI B16.47 Series A Blind Flange
ANSI B16.47 Series B Blind Flange	MSS SP-44 A105 Blind Flange
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
