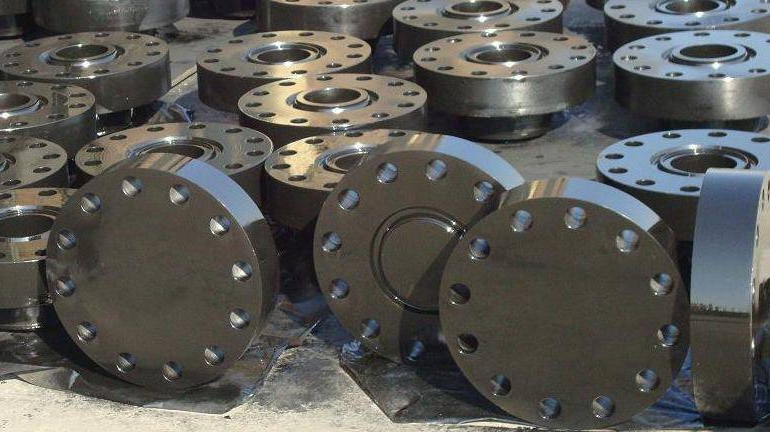

Manufacturer,Stockist and Exporter of Blind Flange for Petrochemical Pipelines

Blind Flange for Petrochemical Pipelines, Blind Flange for Petrochemical Pipelines, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,ASTM A105 Blind Flange,ANSI B16.47 Series A Blind Flange

Raj Bhoomi Engineers is a prominent name in the manufacturing, stocking, and exporting of high-quality Blind Flange for Petrochemical Pipeliness, serving the demanding needs of the global petrochemical industry. Known for their precision engineering and adherence to international standards, the company supplies carbon steel flanges specifically designed for critical applications in petrochemical plants, refineries, and chemical processing facilities. The ASTM A105 grade is particularly well-suited for moderate to high-temperature service in pressure systems, making it a preferred choice across the industry.

The Blind Flange for Petrochemical Pipelines is forged from carbon steel and is known for its durability, strength, and resistance to pressure. These flanges are used to connect pipes, valves, pumps, and other equipment to form a complete pipeline system, ensuring a secure and leak-proof seal. Raj Bhoomi Engineers manufactures a wide range of flange types including weld neck, slip-on, blind, socket weld, lap joint, and threaded flanges, all available in different sizes and pressure ratings (Class 150 to 2500) to meet varied project specifications.

With a strong commitment to quality, Raj Bhoomi Engineers follows stringent manufacturing processes that include heat treatment, dimensional inspection, ultrasonic testing, and chemical & mechanical property verification. Each Blind Flange for Petrochemical Pipelines is produced in compliance with international standards such as ASME, ANSI, DIN, and EN, ensuring that customers receive components that meet or exceed their performance expectations. The company also provides complete documentation, including Material Test Certificates (MTCs) and third-party inspection reports upon request.

Raj Bhoomi Engineers has established a solid export footprint, supplying Blind Flange for Petrochemical Pipeliness to countries including Oman, Qatar, Saudi Arabia, UAE, and Kuwait—key players in the Middle East’s petrochemical sector. Their global presence extends to Spain, Germany, the USA, Canada, and various regions of Africa, where the company supports oil and gas infrastructure and petrochemical development projects. The firm's ability to handle both bulk and customized orders ensures timely delivery to clients worldwide, supported by a robust logistics and supply chain system.

Specification of Blind Flange for Petrochemical Pipelines

Specification Item	Details
Material Grade	ASTM A105 (Carbon Steel)
Product Type	Blind Flange
Standard Specifications	ASME B16.5, ASME B16.47, ANSI, DIN, EN, BS
Size Range	½" to 48" (DN15 to DN1200)
Pressure Ratings	Class 150, 300, 600, 900, 1500, 2500
Face Type	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Manufacturing Type	Forged
Connection Type	Bolted, for closure at the end of piping systems
Temperature Range	Up to 538°C (1000°F), depending on design and pressure class
Applications	Oil and Gas, Petrochemical, Refineries, Offshore Platforms, Power Plants
Corrosion Resistance	Moderate (can be enhanced with coating or plating)
Testing & Certification	Hydrostatic Test, Ultrasonic Test, MTC (EN 10204 3.1/3.2), NDT (if required)

In addition to its comprehensive product range, Raj Bhoomi Engineers is recognized for its client-focused service and technical expertise. The company works closely with engineering firms, EPC contractors, and end-users to offer tailored solutions that match specific project needs. Their in-depth understanding of petrochemical process requirements allows them to deliver products that perform reliably even in harsh environments.

the Blind Flange for Petrochemical Pipelines from Raj Bhoomi Engineers represents a combination of strength, reliability, and precision engineering. With a reputation built on quality, global reach, and customer satisfaction, Raj Bhoomi Engineers continues to be a trusted partner for petrochemical companies around the world seeking dependable piping components.

Blind Flange for Petrochemical Pipelines Chemical Properties

Element	Composition (%)
Carbon (C)	0.35 max
Manganese (Mn)	0.60 – 1.05
Phosphorus (P)	0.035 max
Sulfur (S)	0.040 max
Silicon (Si)	0.10 – 0.35
Copper (Cu)	0.40 max (if specified)
Nickel (Ni)	0.40 max (if specified)
Chromium (Cr)	0.30 max (if specified)
Molybdenum (Mo)	0.12 max (if specified)
Vanadium (V)	0.08 max (if specified)

Blind Flange for Petrochemical Pipelines Mechanical Properties

Property	Value	Unit	Notes
Tensile Strength	485 – 655	MPa	Minimum 70 – 95 ksi
Yield Strength (0.2% Offset)	≥ 250	MPa	Minimum 36 ksi
Elongation (in 2")	≥ 22	%	For standard specimen
Reduction of Area	≥ 30	%	May vary depending on test method
Hardness (Brinell)	≤ 187	HB	Maximum, as per ASTM A105 specification
Impact Energy (Charpy V-Notch)	Not required unless specified	–	Required only for low-temperature service

Features of Blind Flange for Petrochemical Pipelines

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of Blind Flange for Petrochemical Pipelines

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	ANSI B16.47 Series A Blind Flange
ANSI B16.47 Series B Blind Flange	MSS SP-44 A105 Blind Flange
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
