Manufacturer,Stockist and Exporter of Custom A105 Blind Flange

Custom A105 Blind Flange, Custom A105 Blind Flange, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,Custom A105 Blind Flange,ANSI B16.47 Series A Blind Flange

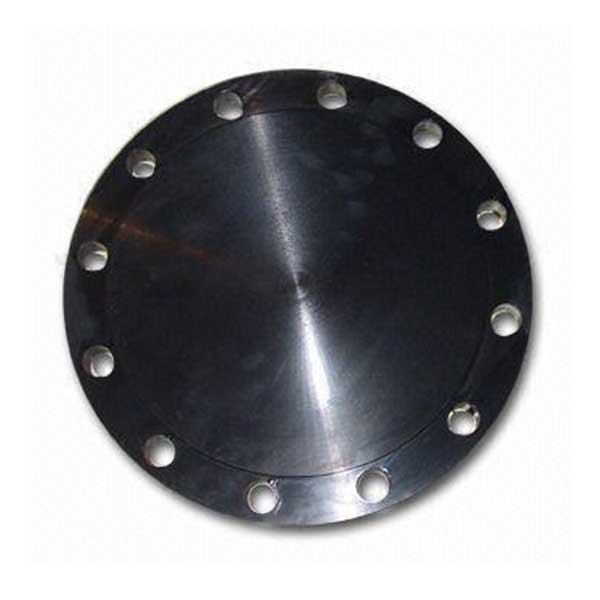

Custom A105 Blind Flange is a crucial component widely used in the oil and gas, petrochemical, and power generation industries for closing the ends of piping systems. Manufactured using ASTM A105 carbon steel, these blind flanges offer excellent strength, durability, and resistance to high pressure and temperature conditions. As the name suggests, they are custom-made to meet specific industrial requirements, ensuring a perfect fit and reliable sealing. Their primary purpose is to halt flow, allow maintenance, or facilitate pressure testing in a system without causing leakage.

Raj Bhoomi Engineers is a prominent manufacturer, stockist, and exporter of Custom A105 Blind Flanges. With a strong foundation in quality engineering and precision manufacturing, the company has earned a reputable position in the global market. Their flanges are produced using advanced machining technologies and are subject to rigorous quality control measures. Raj Bhoomi Engineers maintains a comprehensive stock of various sizes and pressure classes, ensuring prompt delivery and consistency across all projects.

The company has successfully exported Custom A105 Blind Flanges to key international markets, including Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, the USA, and Canada, along with a growing presence in various regions of Africa. Their products are favored for large-scale infrastructure and industrial projects in these regions due to their reliability and cost-effectiveness. Raj Bhoomi Engineers also caters to custom requirements, offering solutions that align with client specifications, international standards like ANSI, ASME, and DIN, and project demands.

Custom A105 Blind Flanges supplied by Raj Bhoomi Engineers are commonly used in applications where the pipeline needs to be sealed off permanently or temporarily. Their robust carbon steel construction ensures compatibility with high-pressure systems, and their customizable nature makes them suitable for specialized engineering needs. The flanges are also available with various finishes and coatings, including galvanizing and epoxy, for enhanced corrosion resistance, especially in offshore and coastal installations.

Specification of Custom A105 Blind Flange

Specification	Details
Product Name	Custom A105 Blind Flange
Material Grade	ASTM A105 (Carbon Steel)
Flange Type	Blind Flange (BL)
Manufacturing Standard	ASME B16.5, ASME B16.47, ANSI, DIN, BS, EN, JIS (Custom as per requirement)
Size Range	½” to 60” (DN15 to DN1500)
Pressure Class	Class 150, 300, 600, 900, 1500, 2500 (PN6 to PN400)
Face Type	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Surface Finish	Serrated, Smooth, Stock, Mirror (Custom finishes available)
Coating Options	Black Paint, Anti-rust Oil, Hot-Dip Galvanized, Epoxy Coated
Testing & Certification	PMI Test, Hydro Test, UT, RT, MTC as per EN 10204 3.1 / 3.2
Application Industries	Oil & Gas, Petrochemical, Power Plants, Water Treatment, Marine, etc.
Country of Origin	India
Manufacturer / Exporter	Raj Bhoomi Engineers
Export Destinations	Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, USA, Canada, Africa, Worldwide

Raj Bhoomi Engineers’ commitment to customer satisfaction and global logistics has made them a reliable partner for industrial clients worldwide. The company emphasizes on-time delivery, comprehensive documentation, and adherence to international material traceability and inspection standards, which are critical in sectors where operational safety is paramount.

Overall, if you're seeking a reliable supplier for Custom A105 Blind Flange, Raj Bhoomi Engineers stands out as a trusted name offering high-performance, precision-engineered flanges exported worldwide. Their focus on innovation, customization, and quality assurance positions them as a preferred choice among engineering and procurement professionals across diverse industries.

Custom A105 Blind Flange Chemical Properties

Element	Composition (%)
Carbon (C)	0.35 max
Manganese (Mn)	0.60 – 1.05
Phosphorus (P)	0.035 max
Sulfur (S)	0.040 max
Silicon (Si)	0.10 – 0.35
Copper (Cu)	0.40 max (if specified)
Nickel (Ni)	0.40 max (if specified)
Chromium (Cr)	0.30 max (if specified)
Molybdenum (Mo)	0.12 max (if specified)
Vanadium (V)	0.08 max (if specified)

Custom A105 Blind Flange Mechanical Properties

Property	Value
Tensile Strength	485 MPa (min) / 70,000 psi (min)
Yield Strength	250 MPa (min) / 36,000 psi (min)
Elongation	22% (min) in 50 mm (2")
Reduction of Area	30% (min)
Hardness (Brinell)	187 HBW (max)
Impact Strength	Typically not specified, but available on request
Testing Temperature	Room Temperature (Unless specified otherwise)

Features of Custom A105 Blind Flange

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of Custom A105 Blind Flange

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	ANSI B16.47 Series A Blind Flange
ANSI B16.47 Series B Blind Flange	MSS SP-44 A105 Blind Flange
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
