Manufacturer,Stockist and Exporter of Forged A105 Blind Flange

Forged A105 Blind Flange, Forged A105 Blind Flange, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,Forged A105 Blind Flange,ANSI B16.47 Series A Blind Flange

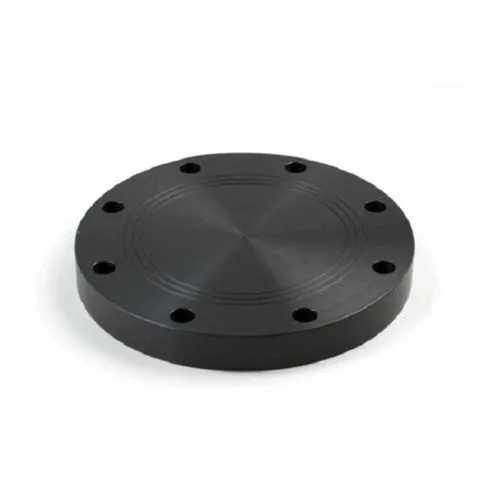

Forged A105 Blind Flange is a critical component in piping systems, designed to close off or seal the end of a pipe or valve. Manufactured using forged carbon steel under the ASTM A105 specification, this type of blind flange offers excellent strength, durability, and resistance to high pressure and temperature conditions. It is commonly used in industries such as oil & gas, petrochemicals, power plants, and marine engineering, where secure sealing is essential for system integrity and safety.

Raj Bhoomi Engineers, a reputed Indian manufacturer, stockist, and exporter, specializes in the production of Forged A105 Blind Flanges. The company manufactures these flanges using high-quality raw materials and advanced forging technology that ensures superior mechanical properties, dimensional precision, and a defect-free finish. Their blind flanges are available in a range of sizes from 1/2" to 48", and in pressure classes from Class 150 to 2500, catering to a wide variety of industrial requirements.

Raj Bhoomi Engineers has established itself as a reliable global supplier, exporting Forged A105 Blind Flanges to several countries including Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, the USA, Canada, and many regions in Africa. Their strong export capability is supported by robust logistics, a large inventory of ready stock, and a commitment to timely deliveries. Each flange undergoes strict quality checks and meets international standards such as ASME B16.5, ANSI, and MSS-SP-44, ensuring they are suitable for critical applications.

Every Forged A105 Blind Flange from Raj Bhoomi Engineers is tested for chemical and mechanical properties and comes with certification like EN 10204 3.1/3.2, ISO 9001:2015, and PED compliance. The flanges are offered in various face types including Raised Face (RF), Flat Face (FF), and Ring Type Joint (RTJ), with surface finishes such as black paint, anti-rust coating, or custom coatings upon request.

Specification of Forged A105 Blind Flange

Specification Item	Details
Product Name	Forged A105 Blind Flange
Material Grade	ASTM A105 (Forged Carbon Steel)
Manufacturing Method	Forged (Hot Forging)
Standard Specifications	ASME B16.5, ANSI B16.5, MSS-SP-44, API 605
Size Range	1/2" to 48" (DN15 to DN1200)
Pressure Ratings	Class 150, 300, 600, 900, 1500, 2500
Flange Type	Blind Flange (BL)
Face Type Options	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Connection Type	Bolted Flanged Connection
Design Temperature Range	-29°C to 425°C (-20°F to 800°F)
Application Industries	Oil & Gas, Petrochemical, Power Generation, Water Treatment, Marine
Corrosion Resistance	Moderate (can be improved with coatings)
Surface Finish Options	Black Paint, Anti-Rust Coating, Custom Coating
Testing Methods	Hydrostatic Test, Ultrasonic Test, PMI, Dimensional & Visual Inspection
Available Certifications	ISO 9001:2015, EN 10204 3.1 / 3.2, PED, IBR, NACE (if required)
Manufacturer	Raj Bhoomi Engineers, India

These flanges are used not only to block pipe ends but also during pressure testing or isolation procedures in pipeline systems. Their forged construction ensures better grain structure and improved strength compared to cast alternatives. With Raj Bhoomi Engineers’ focus on quality, performance, and global service, clients are assured of receiving a flange that meets their project requirements and international expectations.

Raj Bhoomi Engineers is a trusted name for Forged A105 Blind Flanges, offering reliable products that combine high performance with global reach. Their expertise in forging technology, commitment to international standards, and extensive export footprint make them a preferred supplier for customers across various industries worldwide.

Forged A105 Blind Flange Chemical Properties

Element	Composition (%)
Carbon (C)	≤ 0.35
Manganese (Mn)	0.60 – 1.05
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.040
Silicon (Si)	0.10 – 0.35
Copper (Cu)	≤ 0.40 *
Nickel (Ni)	≤ 0.40 *
Chromium (Cr)	≤ 0.30 *
Molybdenum (Mo)	≤ 0.12 *
Vanadium (V)	≤ 0.08 *

Forged A105 Blind Flange Mechanical Properties

Property	Value
Tensile Strength	≥ 485 MPa (70 ksi)
Yield Strength	≥ 250 MPa (36 ksi)
Elongation	≥ 22%
Reduction of Area	≥ 30%
Hardness (Brinell)	≤ 187 HB (for normalized condition)
Impact Test	Not mandatory unless specified
Modulus of Elasticity	~ 200 GPa (29,000 ksi)

Features of Forged A105 Blind Flange

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of Forged A105 Blind Flange

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	ANSI B16.47 Series A Blind Flange
ANSI B16.47 Series B Blind Flange	MSS SP-44 A105 Blind Flange
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
carbon steel slip on flanges	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
