Manufacturer,Stockist and Exporter of Plate Flanges Carbon Steel

Plate Flanges Carbon Steel, Plate Flanges Carbon Steel, A105 Heat Exchanger Flange, ANSI/ASME B16.47 Series B Blind Flange, a105 blind flange, A105 Marine Flange,Plate Flanges Carbon Steel,Plate Flanges Carbon Steel

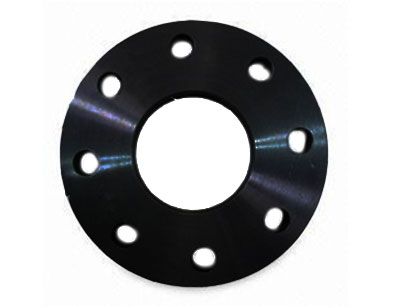

Plate Flanges Carbon Steel are one of the most widely used types of flanges in industrial piping systems, particularly for low-pressure applications. These flanges are typically fabricated from quality carbon steel plates and are designed to be welded directly to the end of a pipe, providing a strong and leak-proof connection. Known for their simple construction, cost-effectiveness, and ease of installation, Plate Flanges Carbon Steel are widely used in industries such as oil and gas, water treatment, petrochemical, shipbuilding, and power generation.

Raj Bhoomi Engineers is a recognized manufacturer, stockist, and exporter of Plate Flanges Carbon Steel, offering high-quality flange solutions built to international standards such as ASTM, ASME, DIN, BS, and EN. With advanced manufacturing technology and a strong focus on quality control, the company ensures that each flange meets strict dimensional and mechanical specifications. Their product range covers a wide array of sizes, pressure ratings, and face types, making them suitable for various industrial applications.

As a global supplier, Raj Bhoomi Engineers exports Plate Flanges Carbon Steel to a diverse range of countries including Oman, Qatar, Saudi Arabia, UAE, Kuwait, Spain, Germany, the USA, Canada, and many regions across Africa and worldwide. Their ability to supply both standard and custom-made flanges has made them a trusted partner for EPC contractors, distributors, and large-scale industrial projects. The company has built a strong reputation for on-time delivery, competitive pricing, and dependable customer service.

The Plate Flanges Carbon Steel manufactured by Raj Bhoomi Engineers are offered in different face types such as Raised Face (RF), Flat Face (FF), and Ring Type Joint (RTJ), and are available in pressure classes ranging from Class 150 to Class 600. These flanges are commonly used where welding is required for a permanent joint and where conditions are not overly demanding in terms of pressure and temperature. To improve durability and corrosion resistance, the flanges can be supplied with coatings such as black paint, anti-rust oil, or galvanization.

Specification of Plate Flanges Carbon Steel

Specification	Details
Product Name	Plate Flanges Carbon Steel
Flange Type	Plate Flange (PL)
Material Grades	ASTM A105, ASTM A516 Gr. 60/70, ASTM A350 LF2, ASTM A36
Manufacturing Standard	ASME B16.5, ASME B16.47, DIN, EN, BS, JIS
Size Range	½” to 48” (DN15 to DN1200)
Pressure Ratings	Class 150, 300, 600
Face Type	Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ)
Thickness	As per ASME/DIN/EN standard dimensions
Surface Finish	Stock Finish, Serrated Finish, Smooth Finish
Coating/Protection	Anti-rust Oil, Black Paint, Galvanized, Epoxy Coating
Connection Type	Welded (Fillet Weld)
Applications	Oil & Gas, Petrochemical, Water Treatment, Power Plants, Marine, Construction
Testing & Certification	EN 10204 3.1/3.2, PMI Test, Ultrasonic Test, NACE MR0175, ISO 9001

Raj Bhoomi Engineers also provides value-added services including third-party inspections, customized fabrication, and material testing with certificates such as EN 10204 3.1/3.2. The company's commitment to engineering precision and customer satisfaction ensures that every flange delivered meets both technical and operational expectations. Their vast inventory and responsive export operations enable quick turnarounds even for urgent international requirements.

For reliable and high-performance Plate Flanges Carbon Steel, Raj Bhoomi Engineers continues to be a preferred choice in the global market. Their dedication to quality, innovation, and service excellence makes them a trusted source for flange solutions across multiple sectors and geographies.

Plate Flanges Carbon Steel Chemical Properties

Element	ASTM A105 (% by Weight)	ASTM A350 LF2 (% by Weight)	ASTM A516 Gr. 70 (% by Weight)
Carbon (C)	≤ 0.35	≤ 0.30	≤ 0.27
Manganese (Mn)	0.60 – 1.05	0.60 – 1.35	0.85 – 1.20
Phosphorus (P)	≤ 0.035	≤ 0.035	≤ 0.035
Sulfur (S)	≤ 0.040	≤ 0.040	≤ 0.035
Silicon (Si)	0.10 – 0.35	0.15 – 0.30	0.13 – 0.45
Nickel (Ni)	—	≤ 0.40	—
Chromium (Cr)	—	≤ 0.30	—
Copper (Cu)	—	≤ 0.40	—
Molybdenum (Mo)	—	≤ 0.12	—
Vanadium (V)	—	≤ 0.08	—

Plate Flanges Carbon Steel Mechanical Properties

Property	ASTM A105	ASTM A350 LF2 (Class 1)	ASTM A516 Gr. 70
Tensile Strength	≥ 485 MPa (70 ksi)	≥ 485 MPa (70 ksi)	485 – 620 MPa (70 – 90 ksi)
Yield Strength	≥ 250 MPa (36 ksi)	≥ 250 MPa (36 ksi)	≥ 260 MPa (38 ksi)
Elongation (%)	≥ 22%	≥ 22%	≥ 21%
Reduction of Area (%)	≥ 30%	≥ 30%	—
Hardness (Brinell)	≤ 187 HB	≤ 197 HB	≤ 200 HB
Impact Toughness	Not mandatory unless specified	≥ 27 J at -46°C (Charpy V-notch)	Not typically required
Temperature Suitability	Ambient to moderate temperatures	Suitable for low temperatures	Suitable for moderate temperatures

Features of Plate Flanges Carbon Steel

Healthy, non-toxic, and stain-free
High temperature and pressure resistance
Hot welding connection
Leak prevention
Excellent heat insulation
Lightweight and easy to transport
Smooth inner wall for reduced pressure loss
Low noise
Suitable for exposed or hidden installation
Chemical corrosion resistance

Available Types Of Plate Flanges Carbon Steel

A105 Pressure Vessel Flange	Forged A105 Blind Flange
A105 Flange RTJ	A105 RF Blind Flange
CS HEAVY BLRF FLANGE	Plate Flanges Carbon Steel
Plate Flanges Carbon Steel	Plate Flanges Carbon Steel
A105 Schedule 160 Blind Flange	ANSI/ASME B16.5 Blind Flange
ANSI/ASME B16.47 Series A(MSS SP44) Blind Flanges	ANSI/ASME B16.47 Series B Blind Flange
Plate Flanges Carbon Steel	Custom A105 Blind Flange
A105 Forged Oversized Flange	A105 XXS Blind Flange

Applications Industry

Pharmaceutical Equipment
Chemical Equipment
Sea Water Equipment
Heat Exchangers
Condensers
Pulp and Paper Industry

Off-Shore Oil Drilling Companies
Power Generation
Petrochemicals
Gas Processing
Specialty Chemicals
Pharmaceuticals
